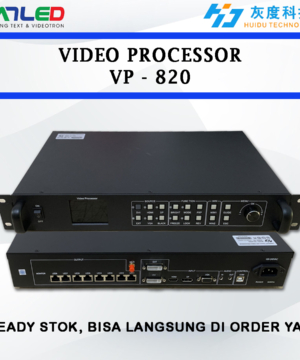

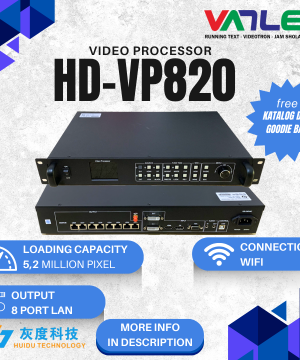

HUIDU HD VP820 SENDING CARD LED VIDEO PROCESSOR U-DISK VIDEO PLAY

HUIDU VP-820 SPESIFICATION

DVI Input – Interface form: DVI-I socket
Signal standard: DVI1.0
Resolution: VESA standard, PC to 1920×1200, HD to 1080p
HDMI INPUT – Interface form: HDMI-A
Signal standard: HDMI1.3 backward compatible
Resolution: VESA standard,≤3840×2160@60Hz
DP INPUT: Interface form ：DP Signal standard:DP1.2 向下兼容 Resolution: VESA standard,≤3840×2160@60Hz
VGA Input : Interface form: DB15 socket
Signal standard: R, G, B, Hsync, Vsync: 0 to 1Vpp ± 3dB (0.7V Video
+ 0.3v Sync ) 75 ohm black level: 300mV Sync-tip: 0V Resolution: VESA standard,≤1920×1080p@60Hz
EXT Input : DVI or SDI，Default standard DVI
AUDIO IN Input x1，3.5mm audio port
AUDIO OUT Output x1，3.5mm audio port
NETWORK PORT OUTPUT : 8-way network port output interface，connected to the acceptance card，total
pixels520W，Widest 8000，Highest 3840
Each network port carries 65W pixels, and the widest single network port is
2048 pixels and the highest is 2048 pixels.
MONITOR Synchronous monitoring of HDMI output interface, external LCD display，
1920×1080@60Hz
http://www.huidu.cn/ 5
SQUARE USB PORT (TYPE B)
Connect to the PC, debug the parameters of the sending card and receiving
card, and program upgrades through HDSet software.
Wi-Fi Support mobile phone APP for sending card, receiving card parameter
debugging, program upgrade, etc.— developing
POWER INTERFACE 100-240V~50/60Hz
WHOLE MACHINE POWER
<=75W
Weight <=3.6kg
Size（mm） Case size：（Length）482mm*（width）302.8mm*（hight）65.5mm
Machine case 1.5U standard industrial chassis
