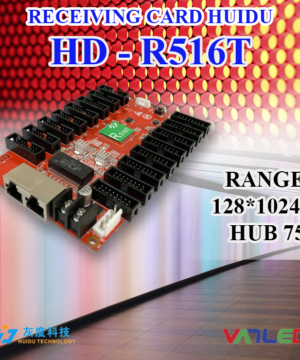

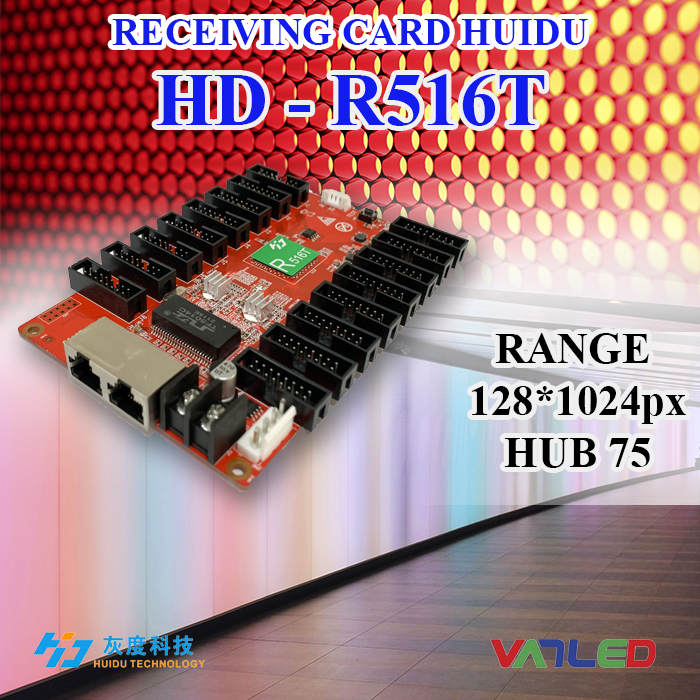

HUIDU HD R516 T RECEIVING CARD VIDEOTRON

Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series.
-Module type : Compatible with all common IC module, supported most PWM IC module.
-Scan mode : Supports any scanning method from static to 1/64 scan
-Communic-ation method : Gigabit Ethernet
-Control range Recommend：131,072 pixels (128*1024)
Outdoor module width ≤256, Indoor module width ≤128
-Multi-card connection : Receiving card can be put in any sequence
-Gray scale : 256~65536
-Smart setting : A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
-Test functions : Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
-Communication distance : Super Cat5,Cat6 network cable within 80 meters
-Port : 5V DC Power // 2,1Gbps Ethernet port*2 // HUB75E*16
-Input voltage : 4V-6V
-Power : 5W
