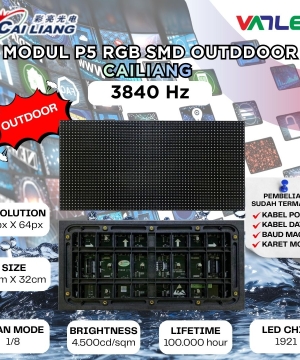

MODUL P5 RGB SMD FULL COLOR OUTDOOR CAILIANG 3840Hz

SPESIFIKASI PANEL MODUL P5 RGB SMD FULL COLOR OUTDOOR CAILIANG
Pitch: 5mm
Pixel Configuration: 1R1G1B
Pixel Density: 40,000 dot/㎡
Module Resolution: 64dot*32dot
Module Size: 320*160mm
Module Pixel: 64*32=2048dot
View Angle: Horizontal 150°，Vertical 120°
Best View: Distance 5m～50m
Work Temperature: -10℃～75℃
Environment Humidity: 10%—90%RH
Storage Temperature: -30ºC～+90ºC
Protection Grade: IP65
System Guard: Moistureproof, dust proof, resist high temperature, corrosion prevention, prevent burn,static-free,shock resistant,resist lightning
Supply Voltage: AC110V－220V±15%，40－65Hz
Average Power: 380w/㎡
Max. Power: 480w/㎡
Control system: WIN 98/ 2000/ XP
Control Method: Control with the computer GPU DVI GPU
Diving Method: Constant Current
Refresh Rate: 3840Hz
Frame Frequency:  ≥60Hz
Grayscale:  Single Color 16384 Level
Color: 10.7 Hundred Million
Brightness: ≥4500CD/M2
Scan mode: 1/8
Brightness Adjustment: Manual & Automatically
Video Signal: RF,S-Video,RGB,RGBHV,YUV,YC,.etc
Control System: PCTV＋DVI GPU＋Master card＋
Mean Time Between Failure: 10000 hour
Lifetime: 100 thousand hours
Flatness: Between adjacent pixels ≤0.5mm
Brightness Uniformity: Pixel light intensity, MODULE brightness is balance ≤0.1
Malfunction dot rate:＜0.0001
Effective Communication Distance: National transmission distance 100 m, Optical fiber transmission distance ≥100 m
